08099080

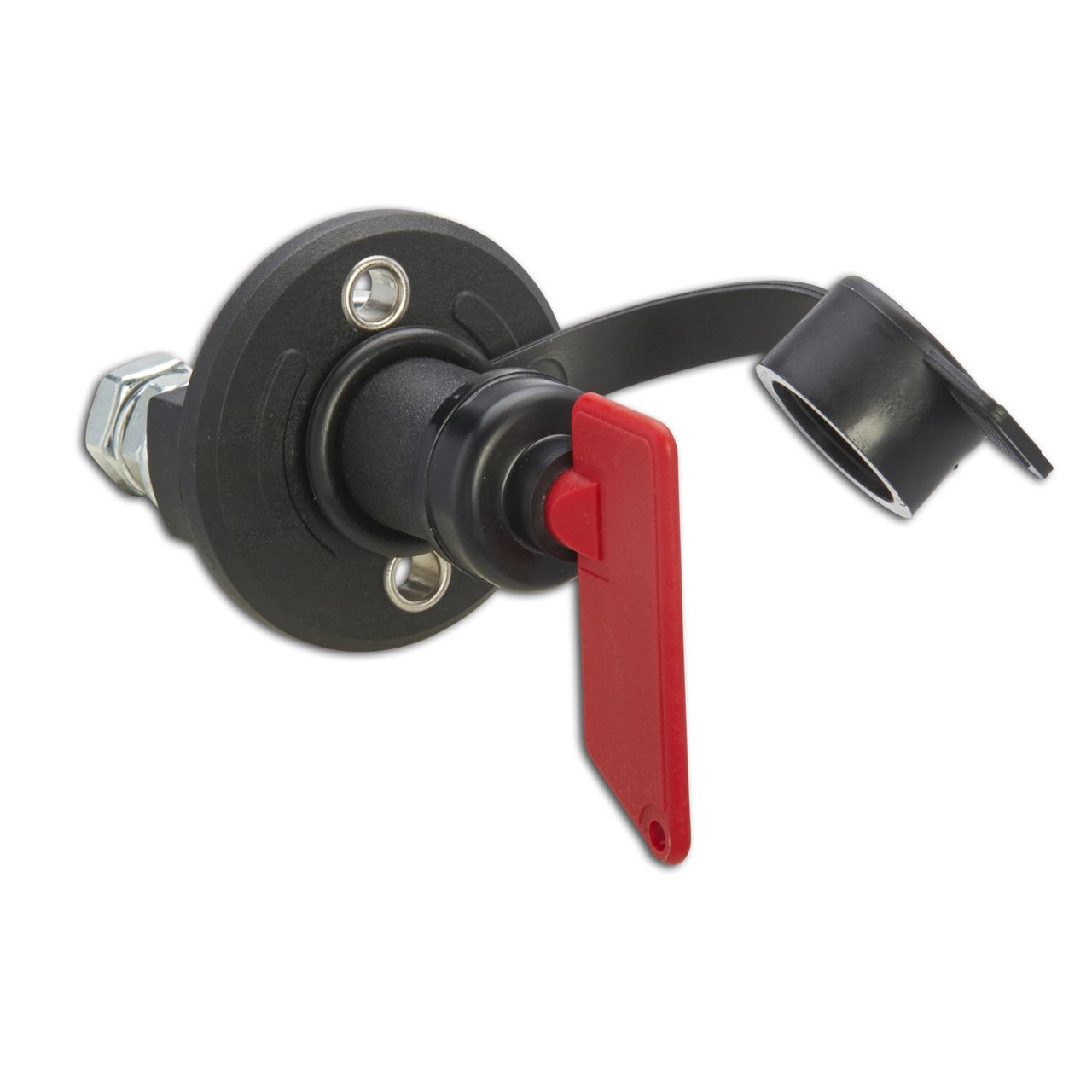

MANUAL BATT SWITCH REMOV KEY M10 | Series: LASIdeal for low-amp, low-voltage applications in off-road and construction vehicles and agricultural and marine equipment, the LAS Series 24V 150A Compact SPST Manual Battery Disconnect Switch with Rubber Cap (08099080) features a compact design with pass-through mounting for installation where space is limited.
The removable, red handle is easy to see and helps ensure safe operation of the compact battery switch by authorized personnel. A rubber cap provides protection when the actuator is removed.
| Property | Value |
|---|---|
Current Rating (inrush) in Amps | 1000 |
Voltage Rating (V) | 12 |
Hardware | 1000 |
Intermittent Time | IP43 |
Mounting Method | 12 |
- 150 A continuous current rating to match your low-amp application
- M10 studs with hardware included
- Removable, red handle is highly visible and helps ensure safe operation
- Rubber cap protects the battery cutoff switch when the handle is removed
- Current inrush rating of 1000A for 5 seconds
- Weatherproof to IP43 standards
