08098780

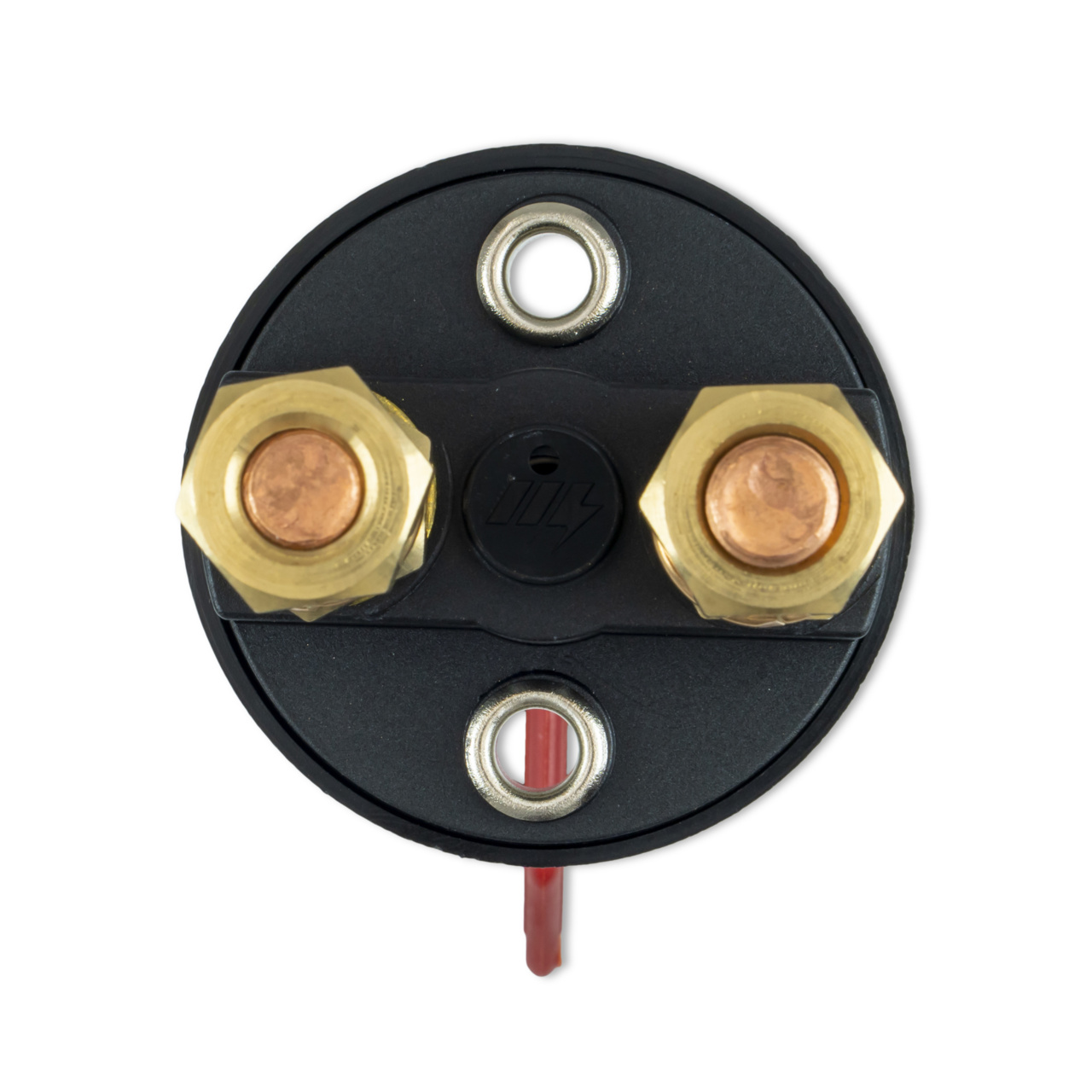

MANUAL BATT SWITCH REMOV KEY M10 | Series: LASIdeal for low-amp, low-voltage applications in off-road and construction vehicles and agricultural and marine equipment, the LAS Series 24V 150A Compact SPST Manual Battery Disconnect Switch (08098780) features a compact design with pass-through mounting for installation where space is limited.
The removable, red handle is easy to see and helps ensure safe operation of the compact battery switch by authorized personnel.
| Property | Value |
|---|---|
Current Rating (inrush) in Amps | 1000 |
Voltage Rating (V) | 24 |
Ingress Protection | IP43 |
Actuator | Removable Red Handle |
Contacts | Copper |
Hardware | 1000 |
Intermittent Time | IP43 |
Mounting Method | 24 |
- 150 A continuous current rating to match your low-amp application
- M10 studs with hardware included
- Removable, red handle is highly visible and helps ensure safe operation
- Current inrush rating of 1 kA for 5 s
- Weatherproof to IP43 standards
