05931400

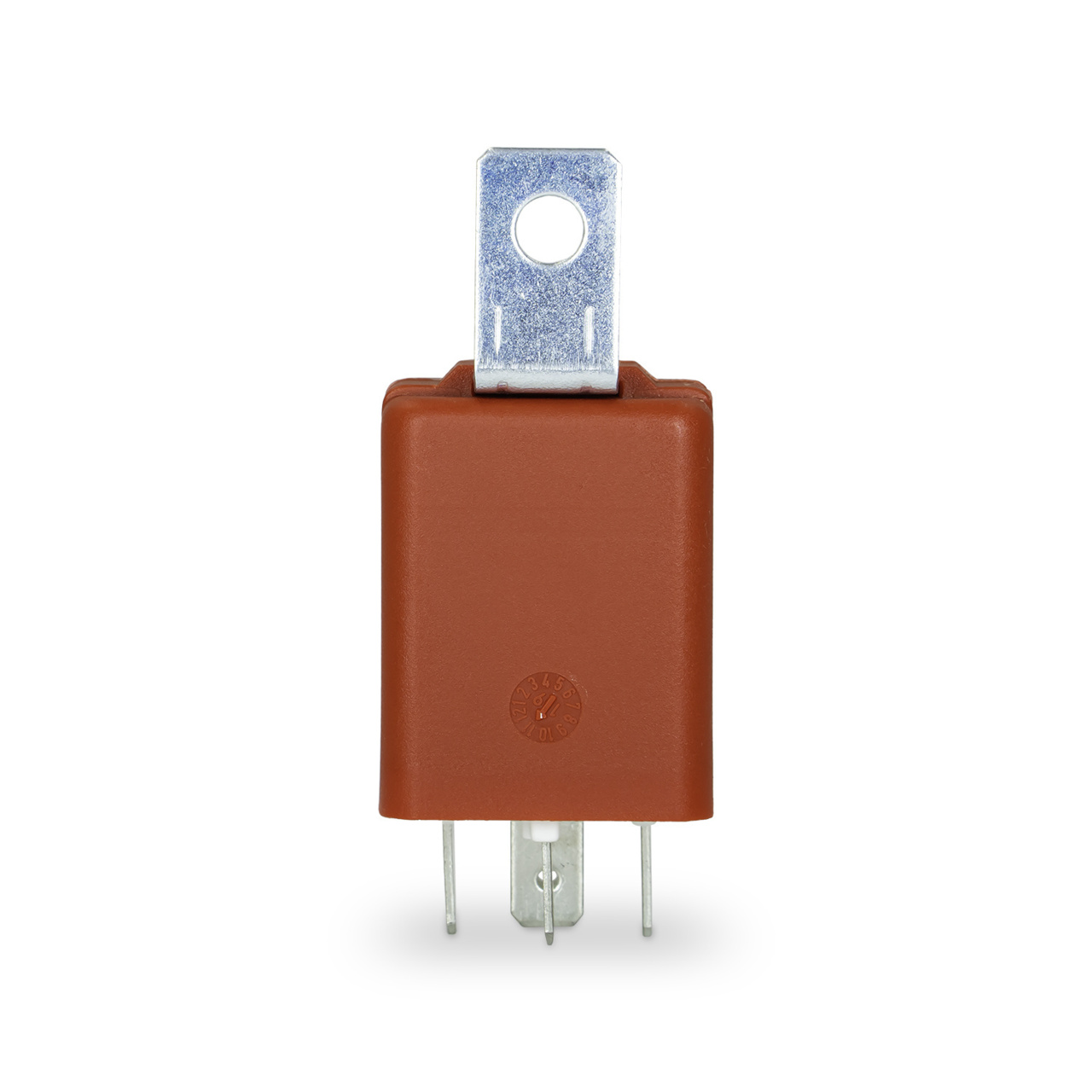

24V Delay Timer Relay 3 Min. | Series: 05931300This 30V 10A ADR Time Delay Relay with 24V Coil (05931400) is an off-delay timer that is designed to delay the opening of the ADR battery switch installed on vehicles approved for EURO 4, EURO 5, and later.
All industrial vehicles produced from 2006+, in order to comply with the pollution regulations, are equipped with the SCR (Selective Catalytic Reduction) system for reducing emissions in exhaust gases using a urea chemical agent. This system requires a cleaning cycle of variable life depending on the vehicle after the engine has been switched off. It is therefore necessary to supply power to the electrical system for about 3 minutes after the vehicle is stopped by installing an off-delay timer relay that delays the isolation of the batteries.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 10 |
Voltage Rating (V) | 30 |
Output Terminals | Faston |
Time Delay Range (s) | 180 |
Circuitry | SPDT |
Housing | Black Thermoplastic PA66 (A0520FN03 25% GF UL94VO) |
Input Terminals | Faston |
Mounting Method | M5 |
Temperature Maximum (°C) | 80 |
Temperature Minimum (°C) | -40 |
Coil Voltage | 24 |
