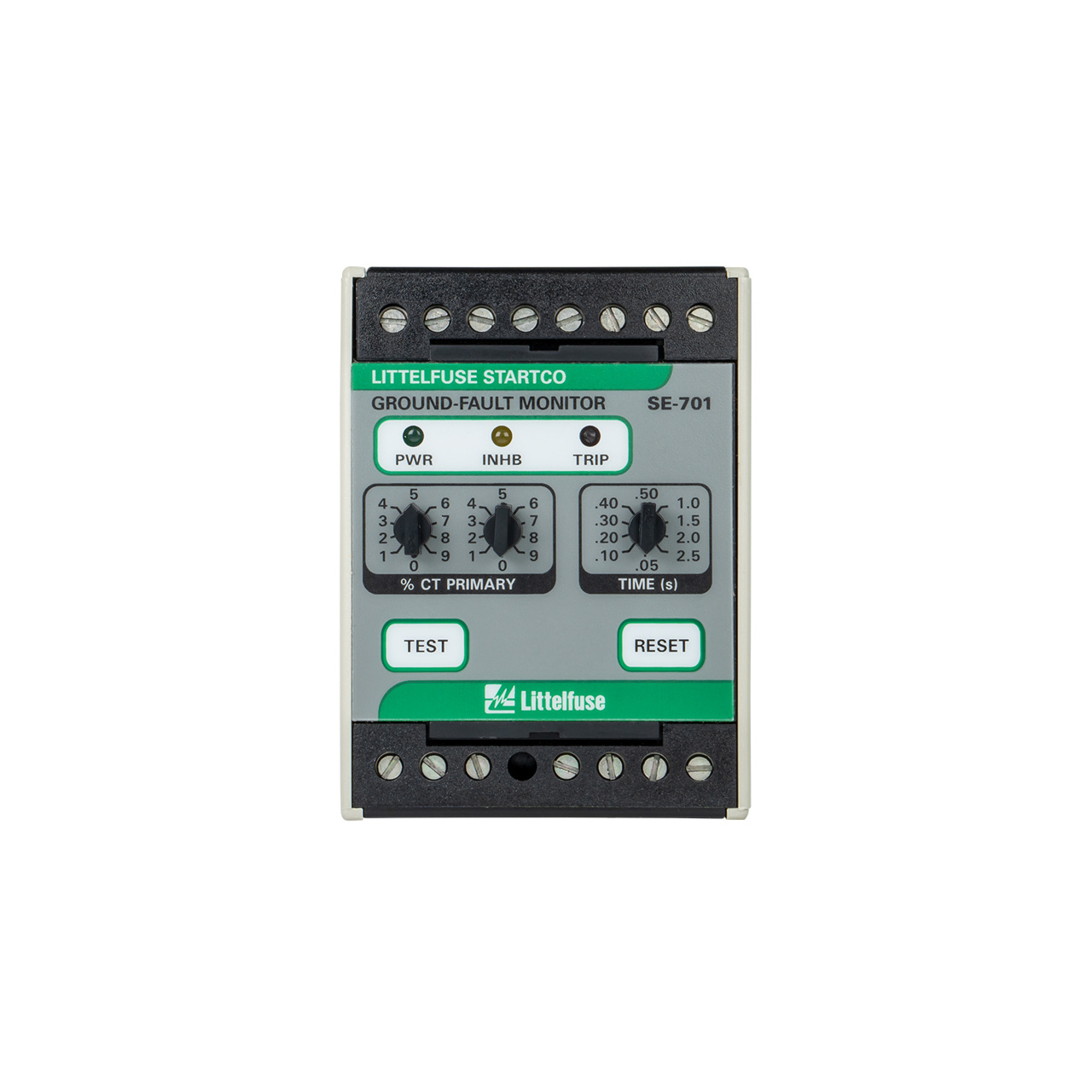

SE-701-0U
GROUND-FAULT MONITOR - UNIVERSAL | Series: SE-701SE-701-0U is a ground-fault monitor with a supply voltage ac and dc of 120/240 and is uniquely suited for systems with significant harmonic content.
| Property | Value |
|---|---|
Supply Voltage AC | 120 / 240 |
Supply Voltage DC | 120 / 240 |
Relay Contacts Config | 1 Form A (N.O.); 1 Form B (N.C.) |
Analog Output Voltage (V) | 0 - 5 V |
IEEE Device Numbers | 50G - 50N - 51G - 51N |
Relay Contacts Operation | Fail-safe / Non Fail-safe |
Weight (kg) | 0 Kg (kilogram) |
Auto Manual Reset | Latching; Autoreset |
Conformally Coated | Optional |
CT Loop Monitoring | Standard |
Frequency (Hz) | 50; 60; ASD |
GF Trip Level Range (%) | 1 - 99% of CT-Primary Rating |
GF Trip Time (s) | 0.5 - 2.5 |
Harmonic Filtering | Standard (DFT) |
Reset Type | Front-panel switch/Remote N.O. Contact |
System Type | Solidly Grounded AC; Resistance Grounded AC |
Test Button | Front-panel switch |
SE-701-0U Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| SE-701-0U | GROUND-FAULT MONITOR - UNIVERSAL |  12/11/2019 |  12/11/2019 |  CoC_RoHS9_SE-701-0U | Yes12/11/2019 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
