DAA10EM1800PZ
Power Diode Discretes-Rectifier TO-263D2 | Series: Avalanche DiodeThe discrete Avalanche diode series comes with a broad variety of packages and breakdown voltages up to 1800V. Improved designs offer in addition to a high rectification performance an excellent surge reverse dissipation capability.
| Property | Value |
|---|---|
VRRM [Rect] (V) | 1800 |
TC (°C) | 150 |
IFSM (A) | 150 |
TVJM (°C) | 175 |
VFO (V) | 0.81 |
rF (mΩ) | 32 |
RthJC (K/W) | 1.5 |
RthCH (K/W) | 0.25 |
IFAV [Diode] (A) | 10 |

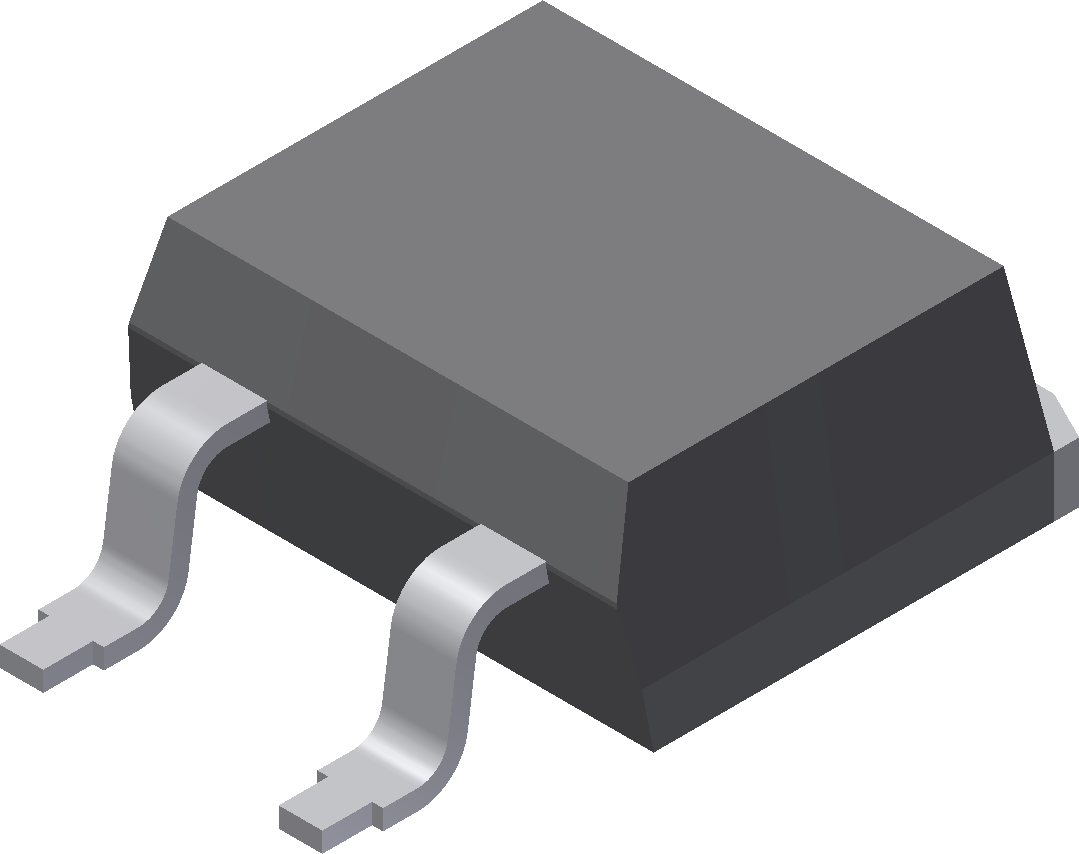

Package Type | TO-263AB (D2Pak) (2HV) |
DAA10EM1800PZ Resources
Link has been copied to clipboardShowing 1 to 2 of 2 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DAA10EM1800PZ-TRL | Power Diode Discretes-Rectifier TO-263D2 | View More | |||||||
| DAA10EM1800PZ-TUB | Power Diode Discretes-Rectifier TO-263D2 | View More |
