FLEC3000Z-0

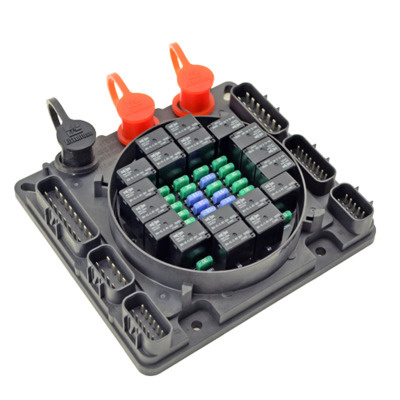

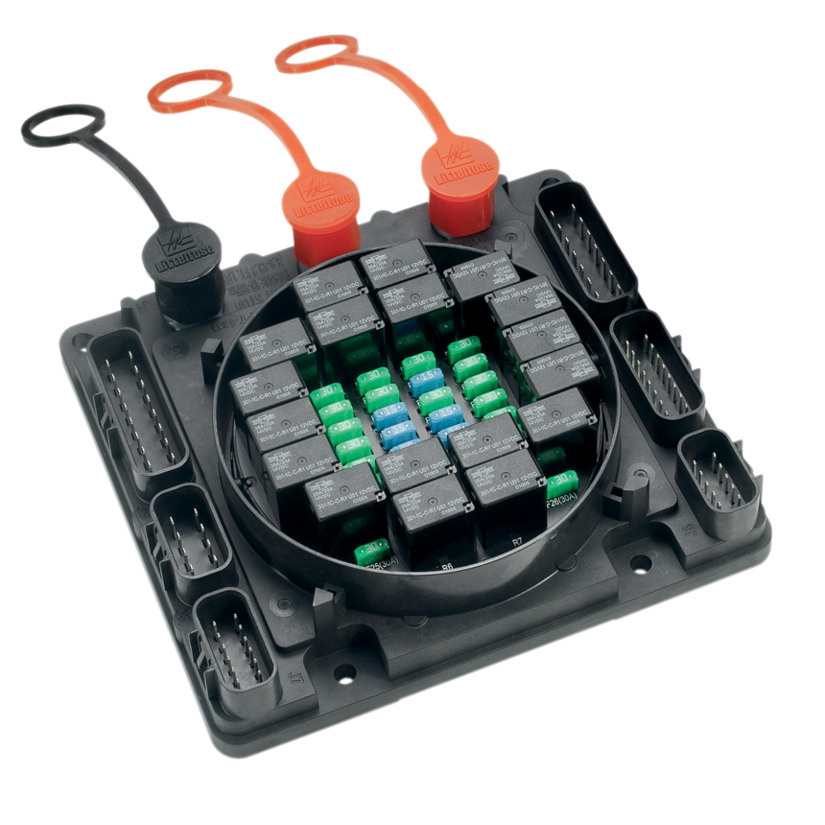

FLEC - Market Varient 1 | Series: FLECDesigned for primary power distribution, the FLEC™ Series Flexible Electrical Center Power Distribution Module (FLEC3000Z-0) accommodates up to 28 MINI® fuses and up to 18 ISO Micro relays in a compact, sealed footprint. This model comes preloaded with 15 A and 30 A MINI® fuses as well as 12 V 35 A ISO Micro 5-pin relays.
The internal printed circuit board (PCB) technologies used in the FLEC™ are highly reliable and reduce the risk of wiring faults. Plus, the use of connectorized interfaces, rather than hard-wired technologies, reduces factory assembly efforts.
In addition, the FLEC™ sealed PDM carries an IP67 rating, which allows it to be mounted in locations susceptible to moisture and dirt without any adverse effects.
| Property | Value |
|---|---|
Fuse Type | MINI |
Input Terminals | (3) M8 Studs |
Output Terminals | (1) 8-way sealed Delphi 280 series – (1) 14-way sealed Delphi 280 series – (1) 16-way sealed Delphi 280 series – (1) 10-way sealed Delphi 150 series – (1) 12-way sealed Delphi 150 series – (1) 16-way sealed Delphi 150 series |
Current Rating (Continuous per Circuit) in Amps (A) | 30A |
Current Rating (Continuous) in Amps | 300 |
Ingress Protection | IP67 |
Number of Cavities | 28 MINI Style Fuses – 18 ISO Style Relays |
Dimensions | 7 mm |
Agency Approval - Shock | ISO 16750-3 SECTION 4.2.2 |
Agency Approval - Vibration | ISO 16750-3 TEST II 32 HOURS |
Mounting Method | Bolt Down |
- Rated for 16 V dc max and 12 V dc continuous
- Rated for 300 A (100 A per stud) maximum total continuous current
- Preloaded with six 15 A MINI® fuses, twenty-two 30 A MINI® fuses, and 18 ISO Micro 5-pin (12 V/35 A) relays
- Includes two spare 15 A MINI® fuses and two spare 30 A MINI® fuses installed in the cover
- Stud caps, fuse puller, hex nuts, washers, and a cover tether are included
